Description

9T8/LED/HO-SIGN/24-840/BP

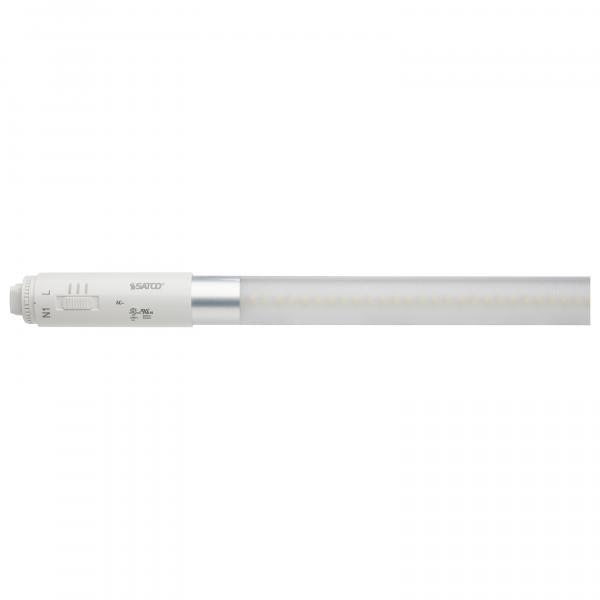

9 Watt T8 LED – 4000K – 1200 Lumens – 120-277 Volt – Type B – Single Ended – Ballast Bypass

---

UNSPSC 39101628

---

Warranty 5 Year Limited – T8 LED Bulbs – Ballast Bypass – Outdoor Sign

---

Brand SATCO

---

Amps 0.075-0.0325A

---

ANSI Base R17d

---

Ballast Bypass Direct Ballast Bypass

---

Ballasting Requirements Ballast Bypass

---

Beam Spread 360

---

Burning Position Universal

---

CCT Selectable No

---

CA Web Text Lawful for sale

---

CO Terse Lawful for sale

---

HI Terse Lawful for sale

---

NV Terse Lawful for sale

---

VT Terse Lawful for sale

---

Color Temp Cool White

---

CRI 83

---

Dimmable Non-Dimmable

---

DLC Approved No

---

Enclosure Rating Enclosed Rated Lamp

---

ENERGY STAR No

---

FCC Compliant Yes

---

BAA Compliant No

---

Finish Frost

---

Product Type Linear

---

Flr Equiv 35W

---

Avg Rated Hours 50000

---

Image File Name S16400.jpg

---

Incandescent Equiv 40W

---

Installation Notes No ballast or external driver required; Direct wire 120-277V line voltage.

---

Lamp Base Recessed Double Contact HO/VHO

---

Lamp Filament LED

---

Lamp Shape T8

---

Lamp Ballast Type A/B/C Type B

---

Lamp End Type Single Ended

---

Lensed Yes

---

Lens Finish Frost

---

Lumens 1200L

---

Material Plastic

---

MOD Decimal In. 1

---

MOL Decimal In. 21.88

---

Nominal Length In. 24

---

NSF Approved Yes

---

Operating Frequency 50/60Hz

---

Operating Temp -30C (-22F) to +45C (+113F)

---

Order In Multiples Of 10

---

Power Factor 0.9

---

Rated For Enclosed Fixture Yes

---

Rated For Vapor Tight Fixture No

---

RoHS Compliant Yes

---

Safety Listing cRUus – Recognized Component;cULus – Certified;cULus – Classified;ETLus – SANITATION RECOGNIZED COMPONENT

---

Location Rating Damp

---

SDS class LED_Lamp

---

Technology LED

---

Temperature (CCT) 4000K

---

Three-Way No

---

Volts 120V-277V

---

Watts 9W

---
