Sale!

23T5/LED/48-840/XD Online

Original price was: $4.99.Current price is: $2.00.

SKU: US-9199922774320 Categories: , Tag:

Description

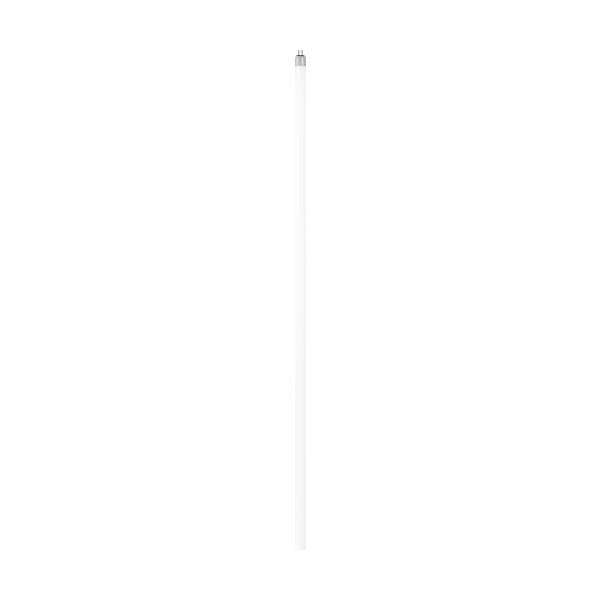

23T5/LED/48-840/XD
23 Watt T5 LED – 4000K – 120-277 Volt – Miniature Bi Pin base – Type C – External Driver required

UNSPSC 39101628

Warranty 5 Year Limited – LED Type C Bulbs

Brand SATCO

Additional Info Not for emergency lighting

Amps 0.192-0.083A

ANSI Base G5

Ballast Bypass Direct Replace with external driver

Ballasting Requirements Ballast replaced with external driver

Beam Spread 220

Burning Position Universal

CCT Selectable No

CA Web Text Lawful for sale

CO Terse Lawful for sale

HI Terse Lawful for sale

NV Terse Lawful for sale

VT Terse Lawful for sale

Color Temp Cool White

CRI 82

Dimmable Yes-Dimmable

Dimmable Function 0-10V Dimming Only

DLC Approved Yes

DLC Classification Standard

DLC ID PLCXVV6NDZC1

DLC Primary Use 4-lamp External Driver (UL Type C) Lamps

Enclosure Rating Enclosed Rated Lamp

ENERGY STAR No

FCC Compliant Yes

BAA Compliant No

Finish Frost

Product Type Linear

Flr Equiv 54W

Avg Rated Hours 50000

Image File Name S11943.jpg

Incandescent Equiv 100W

Lamp Base Miniature Bi Pin

Lamp Filament LED

Lamp Shape T5

Lamp Ballast Type A/B/C Type C

Lensed Yes

Lens Finish Frost

Lumens 3400L

Material Glass

MOD Decimal In. 0.63

MOL Decimal In. 48

Nominal Length In. 48

NSF Approved ETL Sanitation listed (conforms to NSF)

Operating Frequency 50/60Hz

Operating Temp -20C (-4F) to +45C (+113F)

Order In Multiples Of 25

Power Factor 0.9

Rated For Enclosed Fixture Yes

Rated For Vapor Tight Fixture No

RoHS Compliant Yes

Safety Listing cULus – Certified;cULus – Classified

Location Rating Damp

SDS class LED_Lamp

Technology LED

Temperature (CCT) 4000K

THD 20%

Three-Way No

Volts 120V-277V

Watts 23W

Weight Lb. 0.31

Working Voltage 120-277VAC 43VDC 290mA
