Description

11.6WLED/DW/EL/5-6/40K/120V

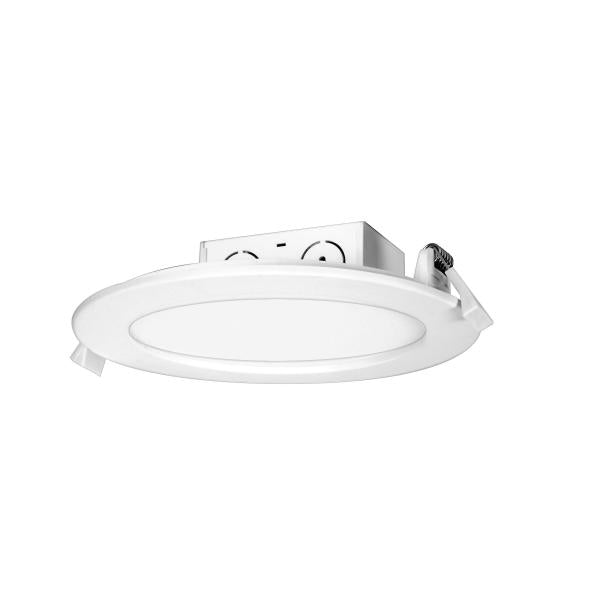

11.6 watt LED Direct Wire Downlight – Edge-lit – 5-6 inch – 4000K – 120 volt – Dimmable

---

UNSPSC: 39111515

---

Warranty: 5 Year Limited – Fixtures

---

Brand: SATCO

---

Air Tight: Yes

---

ANSI Base: Integrated

---

Beam Spread: 100

---

Bulb Included: Integrated

---

CA Prop 65: Lead

---

CCT Selectable: No

---

CA Web Text: California T24 Listed

---

Ceiling Aperture: 6.4375 in. Cutout

---

Clearance Height: 2.36

---

Color Temp: Cool White

---

Connection: Direct Wired

---

CRI: 90

---

Diameter In.: 7.13

---

Dimension String: H:1.94″ DIA:7.13″

---

Dimmable: Yes-Dimmable

---

DLC Approved: No

---

ENERGY STAR: No

---

FCC Compliant: Yes

---

Finish: White

---

Finish Family: White

---

Fixture shape: Round

---

Product Type: Direct Wire LED Downlight

---

Height In.: 1.94

---

Avg Rated Hours: 40000

---

IC Rated: Yes

---

Incandescent Equiv: 65W

---

Indoor Outdoor: Indoor

---

Lamp Base: Connector or Adapter

---

Lamp Shape: Integrated LED

---

Lens Finish: Frost

---

Lens Material: Plastic (PS)

---

Lumens: 780L

---

Material: Thermal Conductive Plastics

---

Max Dry Wall Thickness (In.): 3/4 in.

---

Mounting Procedure: Ceiling

---

Operating Frequency: 60Hz

---

Operating Temp: -20C (-4F) to +45C (+113F)

---

Power Factor: 0.97

---

Replaceable Light Source: No

---

Replaces: S29063;S9063

---

RoHS Compliant: Yes

---

Safety Listing: cETLus – Listed

---

Location Rating: Damp

---

SDS class: LED_Lamp

---

Style: Utility

---

Technology: LED

---

Temperature (CCT): 4000K

---

Trim Color: White

---

Volts: 120V

---

Watts: 11.6W

---

Wattage Selectable: No

---

Weight Lb.: 0.6

---
